Electronics Lab

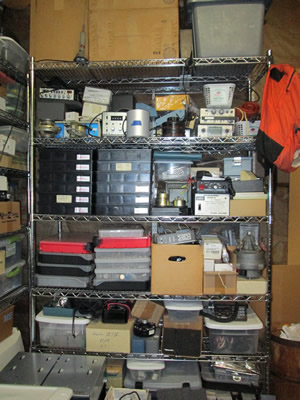

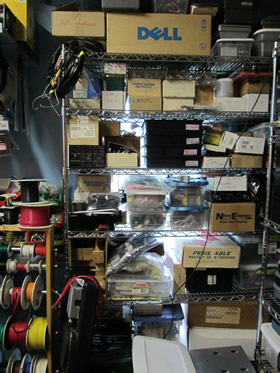

Items that dont Quite fit on the Bench
 |
 |
 |
 |

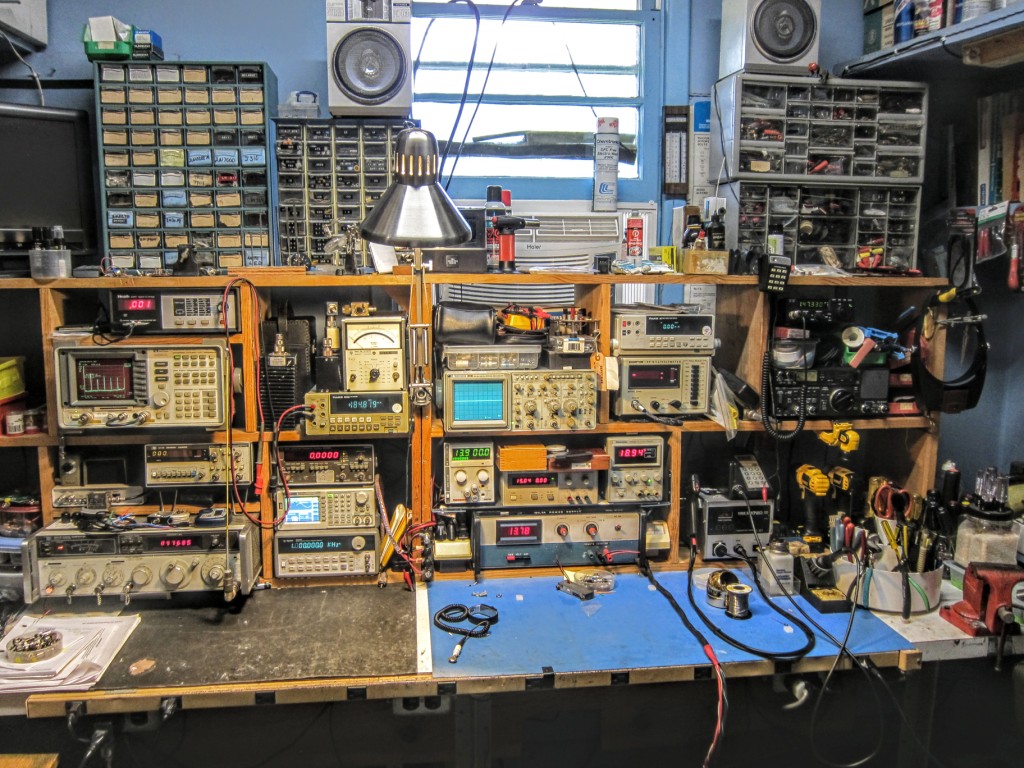

Equipment
- Heathkit 2240 - Digital LC Bridge
- HP5315B 100mHz Counter
External time base provided by CNS Clock II (accuracy better than .1 ppm) - CNS Clock II
GPS based High accuracy time base (.1ppm accuracy steered TCXO) - HP8640B RF signal generator
455 kHz – 512 MHz RF signal generator with Reverse Power protection option and variable oscillator - HP4300A – 0-10mHz True RMS volt Meter
- Bird 43
Wattmeter with PEP board – Slugs for HF/VHF/UHF to 2500 watts. - Fluke 8840A
DMM with True RMS and IEEE option - Siglent SDG1005
0-5mHz DDS signal generator - HP E3610AM - Power Supply
- Tektronix 2230
100mHz Digital storage Oscilloscope - Heath SP2721 – 5 Amp 0 – 15 VDC Power Supply
- Agilent 33120A – DDS 0 – 15 mHz generator
- Fluke 8050A – DMM True RMS option
- Fluke 45 – Dual Display DMM True RMS option
- Icom IC-R70 – General coverage all mode receiver 100kHz -30mHz
- HP8591A 1.8 Ghz Spectrum analyzer with tracking generator option
- Ten-Tec 1220 – 2 Meter 30Watt Kit
- Philips PM 6674 550 mHz counter
- Sorensen HPD 15-20 0-15 VDC 20 AMP Power Supply
- Tektronix PS282 0-18 VDC 5 amp Power Supply
- Boonton Model 92 BD RF Millivolt meter, Auto ranging and dBm options
- Hakko 472D and 927 Desolder / Solder stations

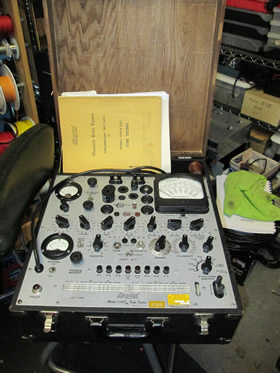

- Hickok 539C - Tube Tester
- IFR 1200S – Communications Service Monitor with Tracking Generator option
